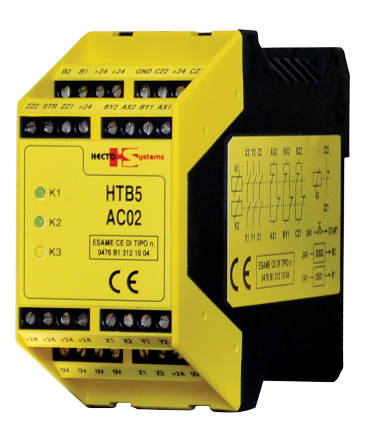

Module safety relay AC02


Group safety relay class level 4, allows you to connect the barriers Red Beam to the actuator final, thus providing an additional level of protection.


- 2006/42/EC Machinery Directive.
- 2004/108/EC Directive Electromagnetic Compatibility.
- 2006/95/EC Low Voltage Directive.
- EN ISO 13849-1 Safety of machinery
- Related parts of control systems security
- General principles for the design.

Technical Features:

-Safety Category 4
-No. 3 outputs N. A.
-N°3 outputs N. C.
-no. 1 auxiliary output N. C.
-24Vdc supply ± 20%
-Absorption 0.4 A max
-Forced guided contacts
-Duration mec. 10 Million maneuvers
-Electrical life 100 thousand maneuvers
-Maximum output current 6A DC/AC
-Maximum operating voltage 30VDC - 240Vac
- nominal conditions 6A at 250Vac - 6A at 30Vdc
-Temperature functional -10° +60 °C
- Degree of covers atand IP20
