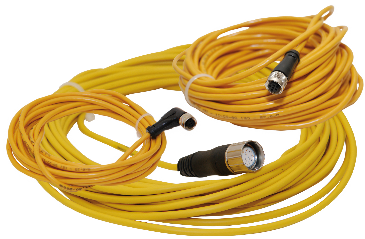

Available in addition to the barriers can be provided also the associated connection cables, to feed the barrier and bring their signals to the control panel.
Types of cables: (with xx indicates the length of the cable).
HTB5-CEDxx: Cable with connector M23 from 12 poles straight, for the connection of the emitters OLD models HTB5, HTBL5, HTBS5 and HTBU5.
HTB5-CENxx: Cable with connector M23 to 12 poles at 90 °, for the connection of the emitters OLD models HTB5, HTBL5, HTBS5 and HTBU5.
HTB5-CRDxx: Cable with connector M23 from 16 poles straight, for the connection of the receivers models HTB5, HTBL5, HTBS5, HTBU5 and HTBV5
HTB5-CRNxx: Cable with connector M23 from 16 poles at 90 °, for the connection of the receivers models HTB5, HTBL5, HTBS5, HTBU5 and HTBV5.
HTB5-CPDxx: Cable with connector M12 (5-Pole straight, for the connection of Barriers HTBR5 models, HTBLR5, (HTB, HTBS, HTBL Industrial, HTBU, HTBSM, HTBLM, HTBUM and HTBV5 only emitters).
HTB5-CPNxx: Cable with connector M12 (5-Pole at 90 °, for the connection of barriers HTBR5 models, HTBLR5, (HTB, HTBS, HTBL Industrial, HTBU, HTBSM, HTBLM, HTBUM and HTBV5 only emitters).
HTB5-CMDxx: Cable with connector M12 from 8 Poles straight, for the connection of receivers HTBSM models, HTBLM, HTBUM and HTBV5.
HTB5-CMNxx: Cable with connector M12 from 8 poles at 90 °, for the connection of the receivers models HTBSM, HTBLM, HTBUM and HTBV5
